In refrigeration and freezing equipment, maintaining a stable low-temperature environment is essential for preserving the quality of items such as food and pharmaceuticals.
Cooling fans, which handle heat dissipation and air circulation inside the chamber, are required to have high reliability and strong environmental durability.
This article explains the specific usage scenarios in stores, the key characteristics required for cooling fans in refrigeration and freezing equipment, and the types of fans commonly used in these applications.

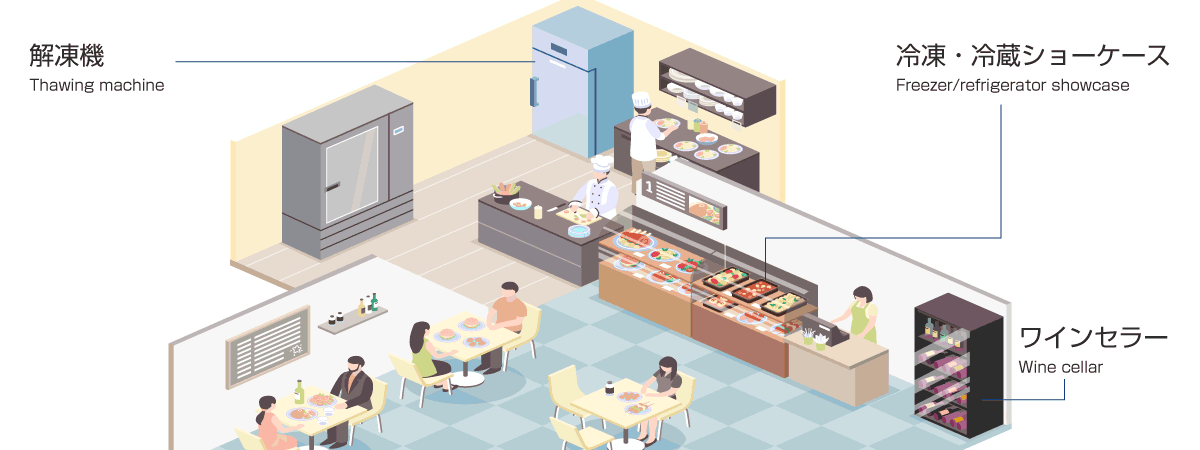

In this section, we’ll look at the locations where fans are installed within refrigeration and freezing systems used in stores.
Thawing MachineThe system supports efficient thawing by using a Blower to draw in outside air and a Centrifugal Fan to circulate air within the chamber.
Thawing MachineThe system supports efficient thawing by using a Blower to draw in outside air and a Centrifugal Fan to circulate air within the chamber.
Refrigerated and Freezer ShowcasesCirculating cold air with fans and creating an air curtain helps improve refrigeration and freezing efficiency.
Refrigerated and Freezer ShowcasesCirculating cold air with fans and creating an air curtain helps improve refrigeration and freezing efficiency.
Wine CellarsFans can efficiently circulate air, making them well suited for use in wine cellars. Since they are often installed indoors, where noise can be a concern, low‑noise fans are recommended.
Refrigerated showcases and wine cellars used in stores are often placed in environments where people are nearby, so fan noise can become an issue.
Selecting low-noise fans contributes to creating a comfortable environment.
Fans in refrigeration and freezing systems frequently come into contact with moisture caused by condensation or frost melting.
Using Splash Proof Fans designed for wet environments ensures reliable operation and helps minimize the risk of malfunction.
Learn More: What is Splash Proof Fan?
In refrigeration and cooling equipment, fans that operate on AC input are often required. However, there is still strong demand for taking advantage of the benefits offered by DC Cooling Fans, such as low power consumption and long service life.

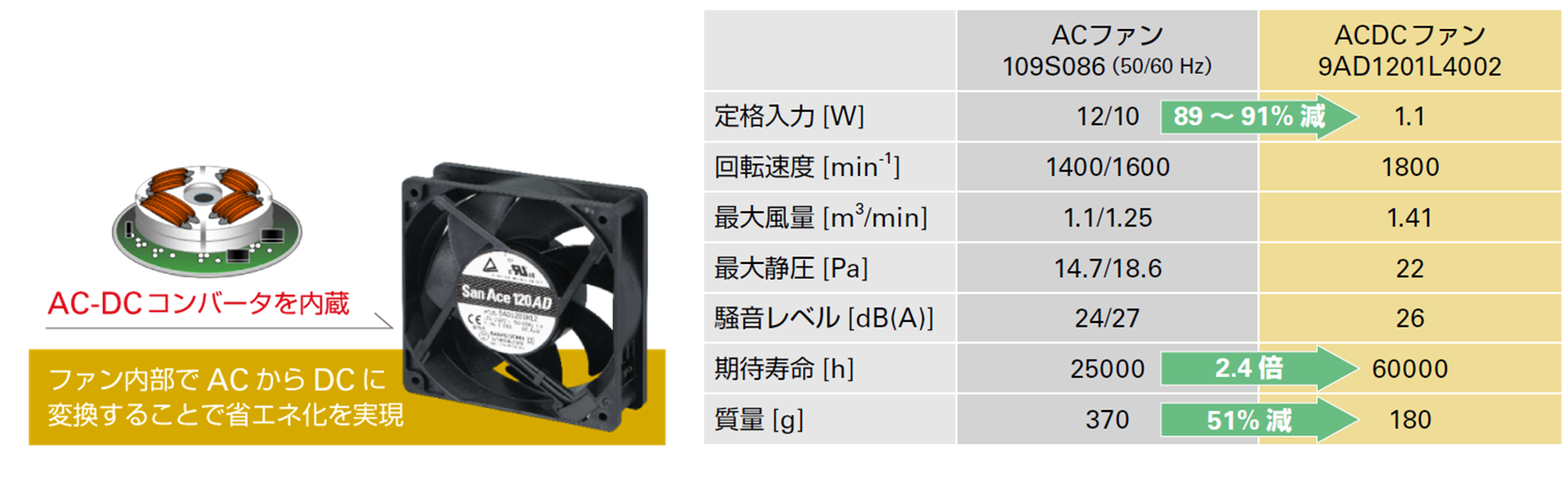

DC Cooling Fans offer lower power consumption compared to AC Cooling Fans, contributing to improved system-level energy efficiency. Their longer service life also helps reduce maintenance requirements. ACDC Fans incorporate a compact and integrated AC to DC conversion circuit and operate with a DC motor, which allows them to provide the same core benefits as DC Cooling Fans, such as low power consumption and extended operational life.
These fans deliver high airflow while maintaining low noise and low power consumption. They are available in a wide range of sizes from 60 mm to 140 mm.
Noise level has been reduced by about 13 dB(A) compared to our conventional product*1.
Power consumption has been reduced by about 44% compared to our conventional product*2.
*1: Comparison between our conventional product (80 × 25 mm, Part number: 109R0812G401) and the low noise fan (80 × 25 mm, Part number: 9RA0812G4001).
*2: Comparison between our conventional product (92 × 25 mm, Part number: 9A0912G401) and the low noise fan (92 × 25 mm, Part number: 9RA0912G4001).
It offers dust and water protection compliant with the IP68, IP55, and IP54 ratings.
It offers dust and water protection compliant with the IP68, IP55, and IP54 ratings.
Our lineup also includes the Splash Proof Long Life Fan (9WL type), featuring an expected service life of around 20 years (180,000 hours*).
* Indoor environment, L10: 90% survival rate, 60°C, rated voltage, continuous operation, free‑air condition
This Centrifugal Fan provides superior dust and water resistance.
Delivers air in the radial direction and provides excellent performance in both airflow and static pressure.
It achieves dust and water resistance compliant with the IP68, IP56, and IP54 protection ratings.
This is a waterproof ACDC fan, ideal for environments where water or dust is present and AC power is used.
The fan converts AC power to DC internally for operation, allowing it to deliver the superior characteristics of DC Cooling Fans, including low power consumption and an extended service life.
It achieves dust and water resistance compliant with the IP68 and IP56 protection ratings.
The IP (Ingress Protection) rating of our Splash Proof Fan series is based on IEC 60529 and applies only to live electrical components, such as motor coils and electronic parts. Mechanical components such as impellers and bearings are not included in this rating, so under certain conditions, like condensation or water exposure, these parts may be impacted.
When using the product for extended periods in environments exposed to dust, water, or condensation, implement appropriate countermeasures and evaluate based on specific usage conditions.
* For detailed information, please refer to the safety precautions..
